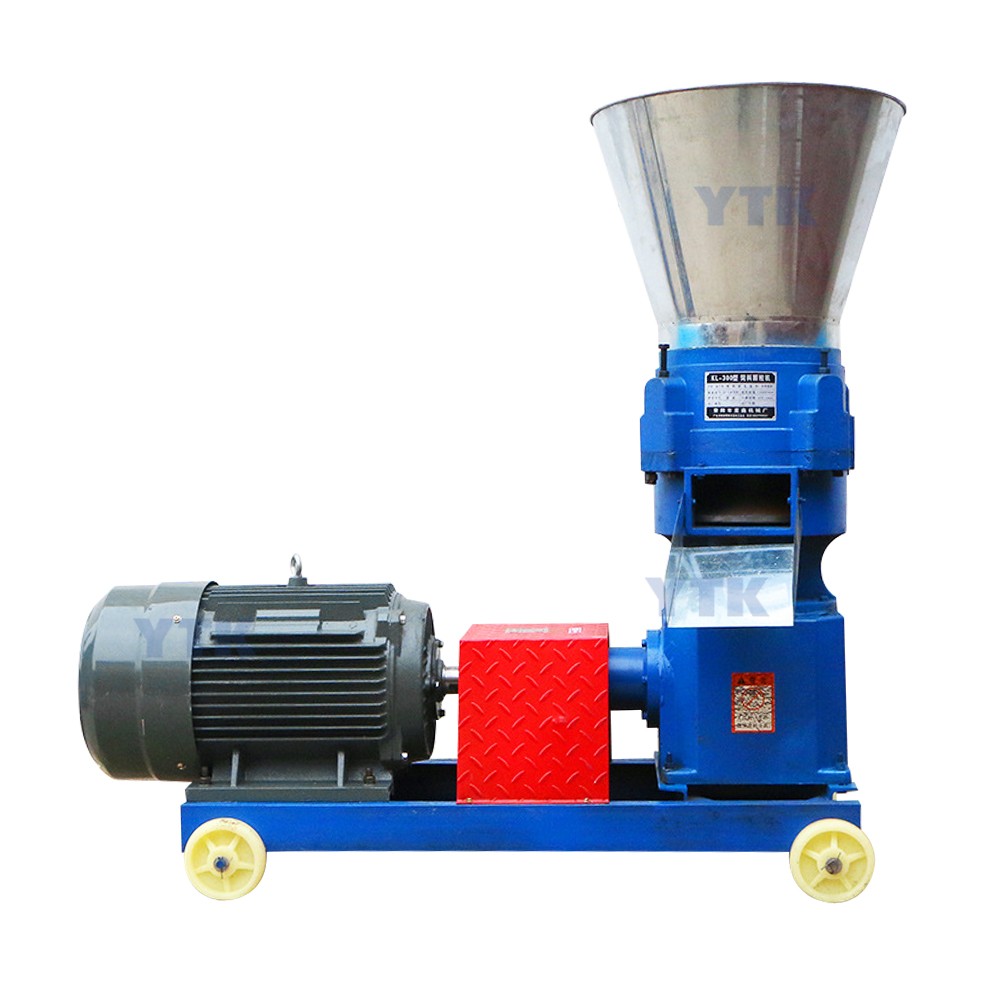

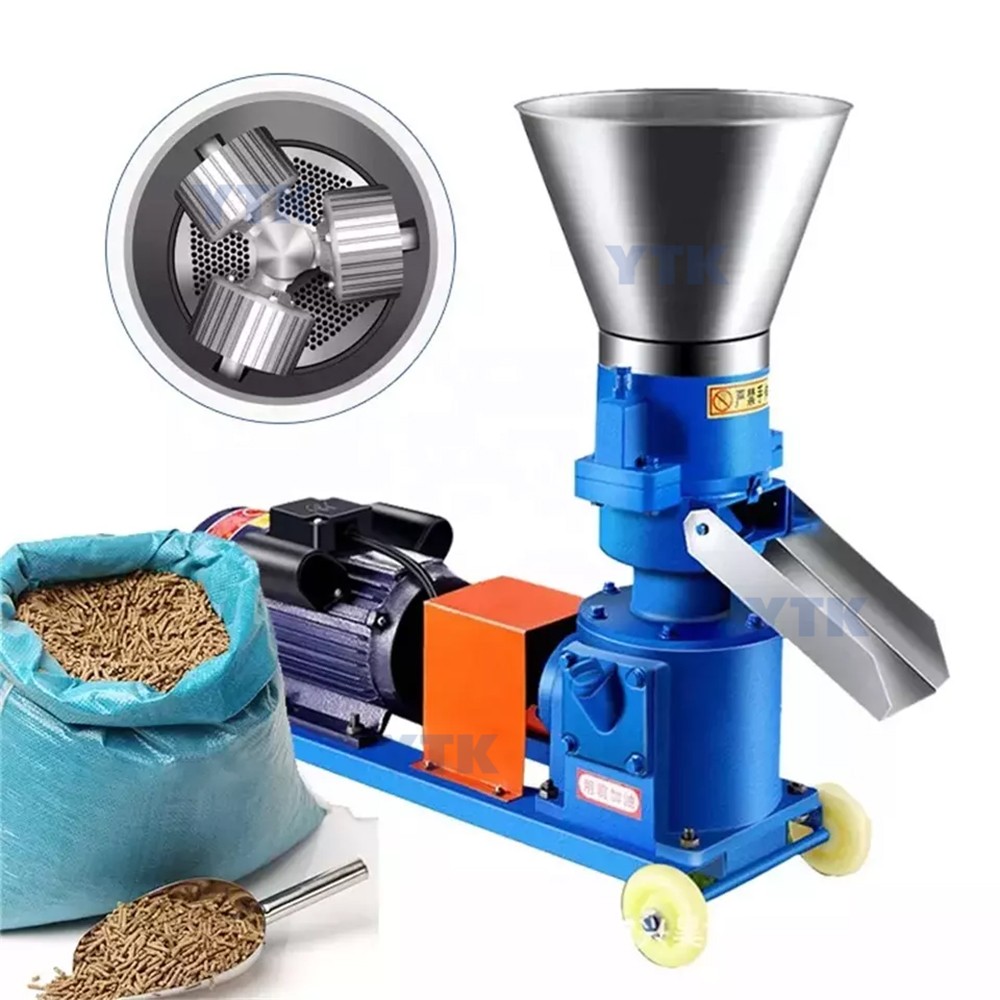

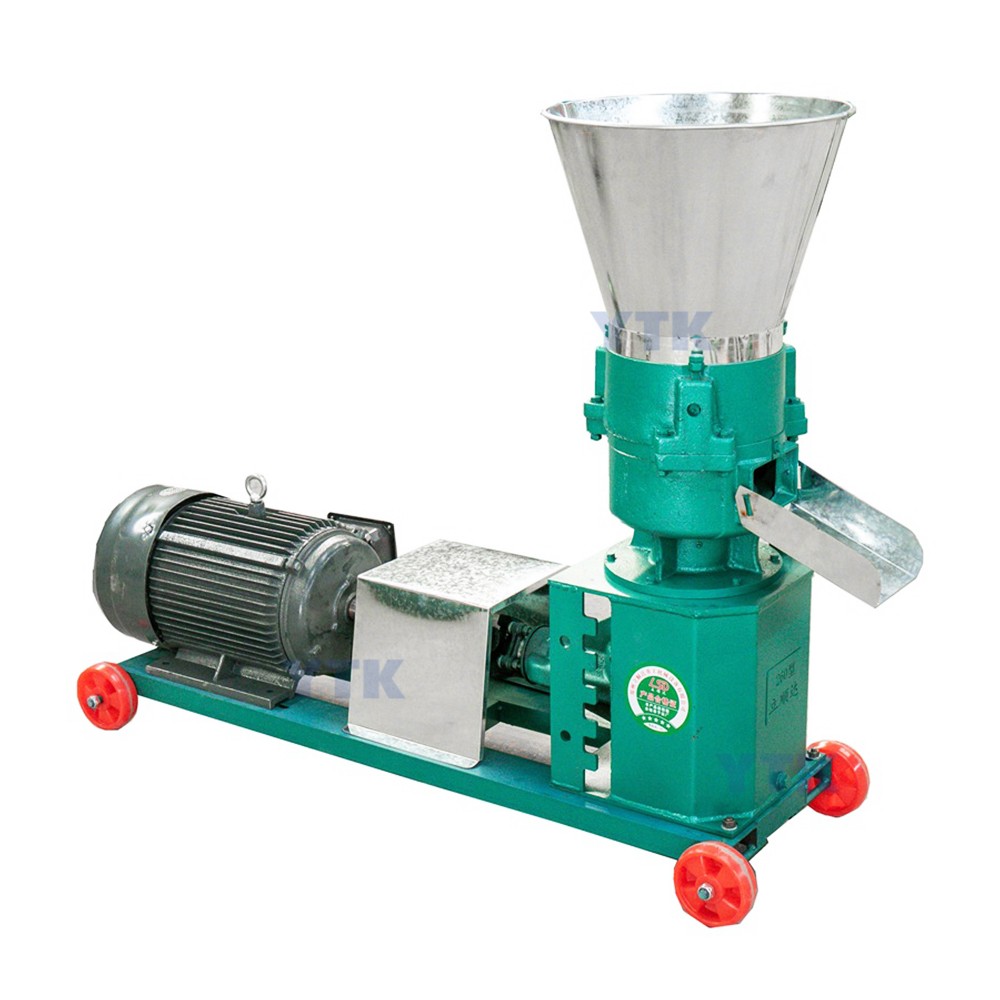

Small Sawdust Granulator Flat Mold Biomass Fuel Granulator For Animal Feed Pellet Machine

  • Product Item：YS125
  • Max. Capacity: 600 kg/h
  • Dimension(L*W*H): 75*32*70cm
  • Weight: 75 kg
  • Voltage: 220/380V
    • Biofuel manufacturing machine
    Inquiry Send Email

    Description

    Product Description
    Feed granule machine (also known as: granule feed machine, feed granule machine, granule feed molding machine), belongs to the feed granule equipment. It is a feed processing machine with corn, soybean meal, straw, grass and rice husk as raw materials and directly pressed into granules after grinding raw materials.
    Specification
    Model
    Capacity (kg/h)
    Power(kw)
    Size (cm)
    Pellet diameter(mm)
    Water Capacity(kg)
    Voltage
    Power
    YS125
    60-80
    200/380V
    4KW
    75*32*70
    2.5-10
    0~2
    YS150
    90-100
    200/380V
    4KW
    78*33*77
    2.5-10
    0~2
    YS160
    100-150
    200/380V
    4.5KW
    80*34*78
    2.5-10
    0~2
    YS180
    150-200
    200/380V
    4.5KW
    90*38*85
    2.5-10
    0~2
    YS210
    200-300
    380V
    7.5KW
    100*43*95
    2.5-10
    0~2
    YS230
    300-400
    380V
    11KW
    118*58*112
    2.5-10
    0~2
    YS260
    400-600
    380V
    18.5KW
    126*46*115
    2.5-10
    0~3
    YS300
    600-800
    380V
    22KW
    138*55*125
    2.5-10
    0~3
    YS400
    800-1000
    380V
    30KW
    160*80*170
    2.5-10
    4~6

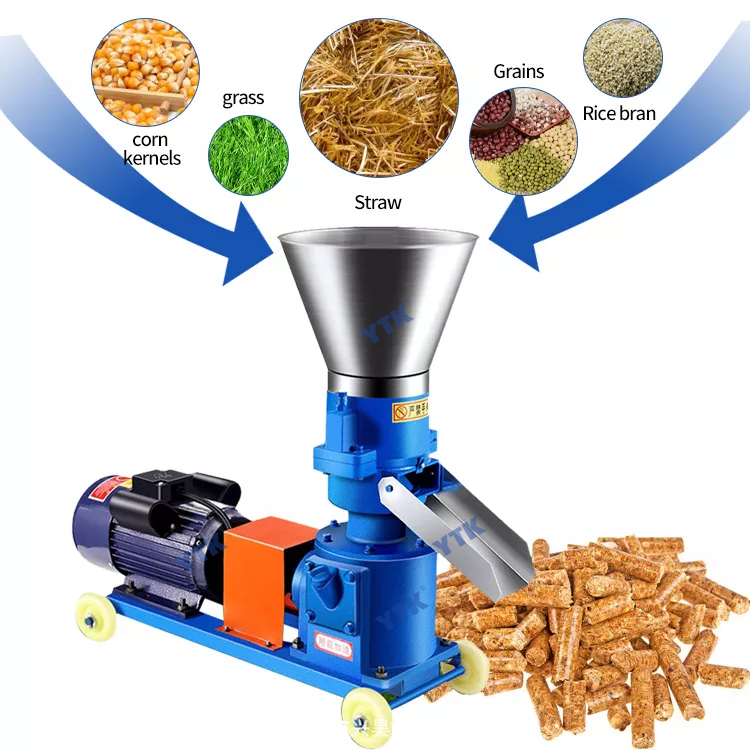

    Application
    Feed granule machine is widely used to produce feed pellets and biomass fuel pellets. Wide Application Range: Any kind of biomass materials containing wood fiber, such as peanut shell, bagasse, castor shell, straw, sawdust, coffee grounds, rice husk, sunflower shell, cotton stalk, tobacco residue, leaf mustard stalk, bamboo, jute residue, tea residue, wheat-straw, palm shell, bean shell,coconut shell, dregs of decoction, and wood waste, etc.

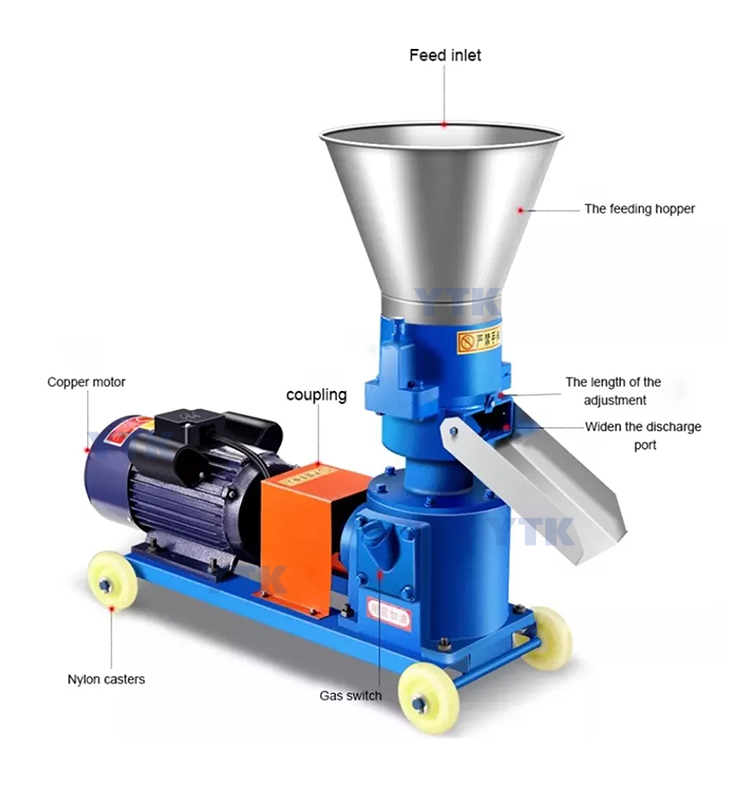

    Details Images

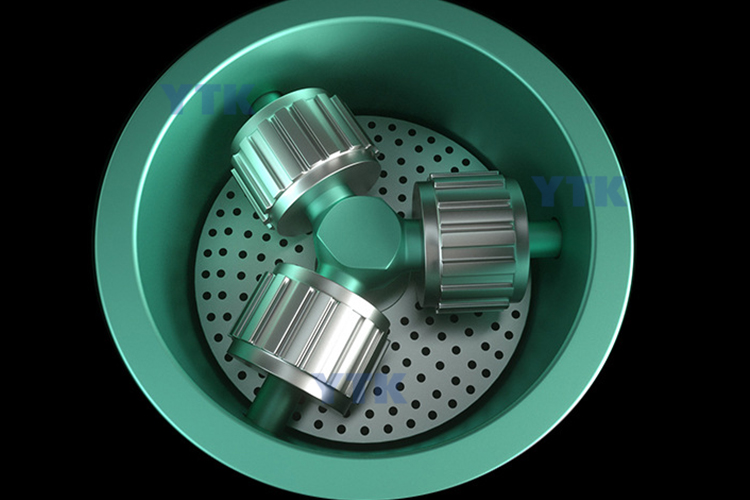

    The chromium vanadium steel material has undergone high temperature quenching
    treatment,which is resistant to abrasion and high temperature

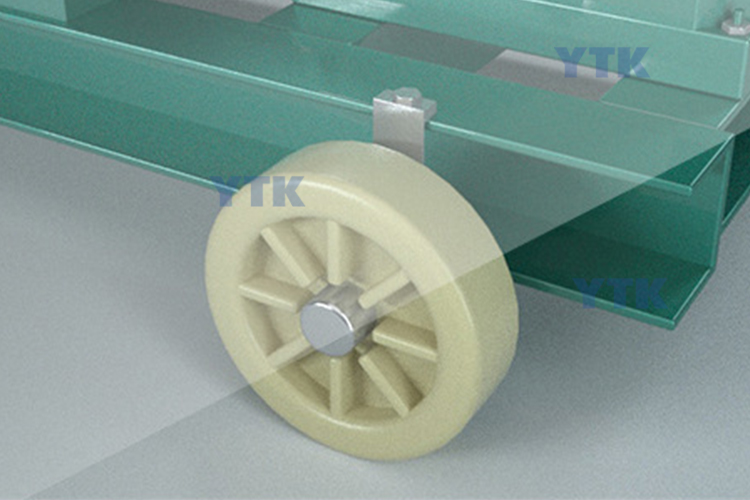

    Nylon casters

    Widen and thicken the feed hopper
