Description
Description

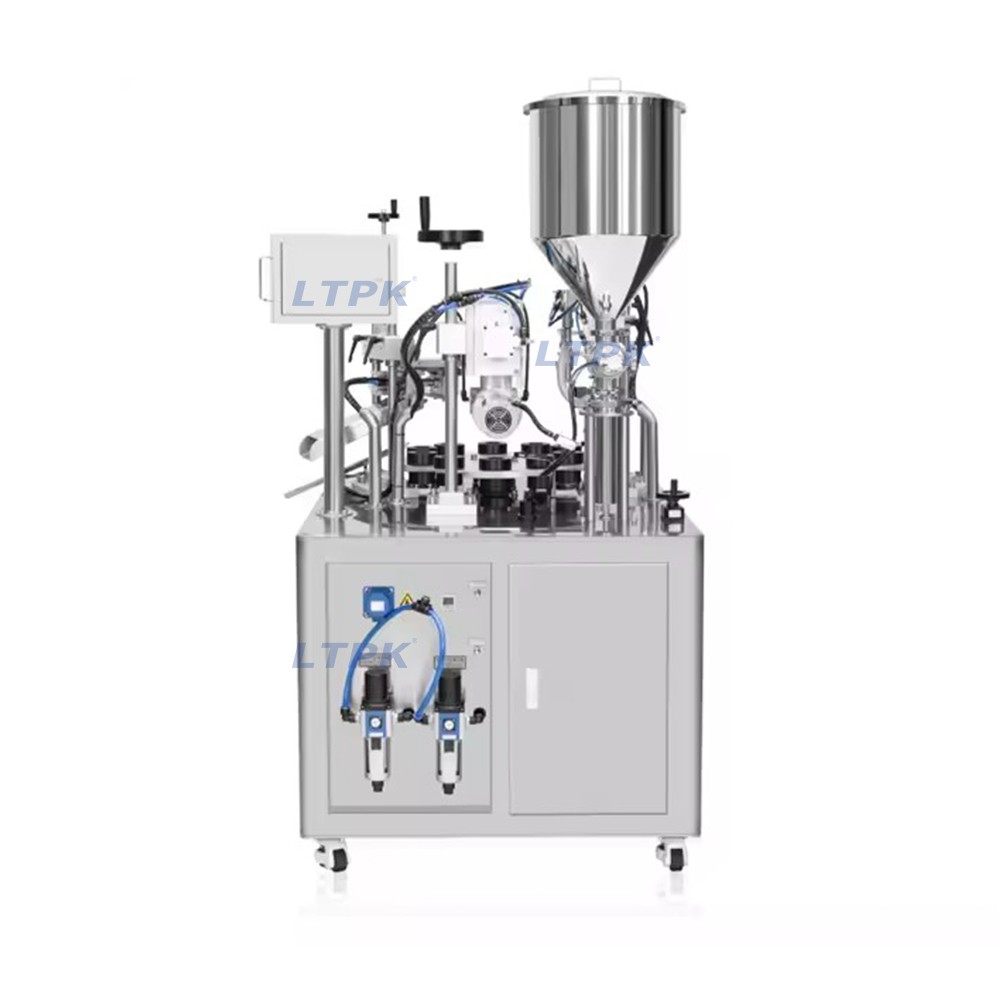

This machine adopts ultrasonic to calculate the sealing, and the sealing effect is stable and long-lasting; the lines at the sealing are clear and not deformed;The machine is a high-quality and high-performance filling and sealing packaging machine for liquid and paste containers. Tube filling and sealing machine adopts manual tube feeding, automatic color code detection, automatic filling, automatic tube tail sealing and automatic tail cutting.
Technical Parameters
|
Model |
LT-006 |
|
Voltage |
220/110V |
|
Power |
2.2KW |
|
Frequency |
20kHZ |
|
Workstation |
ten station |
|
Filling range |
6-60ml/10-120ml/25-250ml/50-500ml |
|
Filling accuracy |
±1% |
|
Sealing speed |
22-25pcs/min |
|
Tube height |
50-250mm |
|
Tube diameter |
13-50mm |
|
Applicable tube material |
Plastic composite tube, aluminum-plastic tube |
|
Air pressure |
0.5-0.6MPa |
|
Air consumption |
0.35m³/min |
|
Size |
1300*900*1650mm |
|
Weight |
380kg |
Application
This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc
Detail Images
