Yason Factory Semi Automatic Pneumatic Paste Filling Machine For Cream Shampoo Cosmetic Paste Filler (5~50Ml) Supply

  • Product Item：YTK-A02
  • Dimension: 34*34*80cm
  • Hopper capacity: 10L
  • Filling range: 5-50ML
  • Filling Speed: 20-60pcs/min
    • honey filling machine  , paste filling machine  , oil filling machine
    Inquiry Send Email

    Description

    Product Description

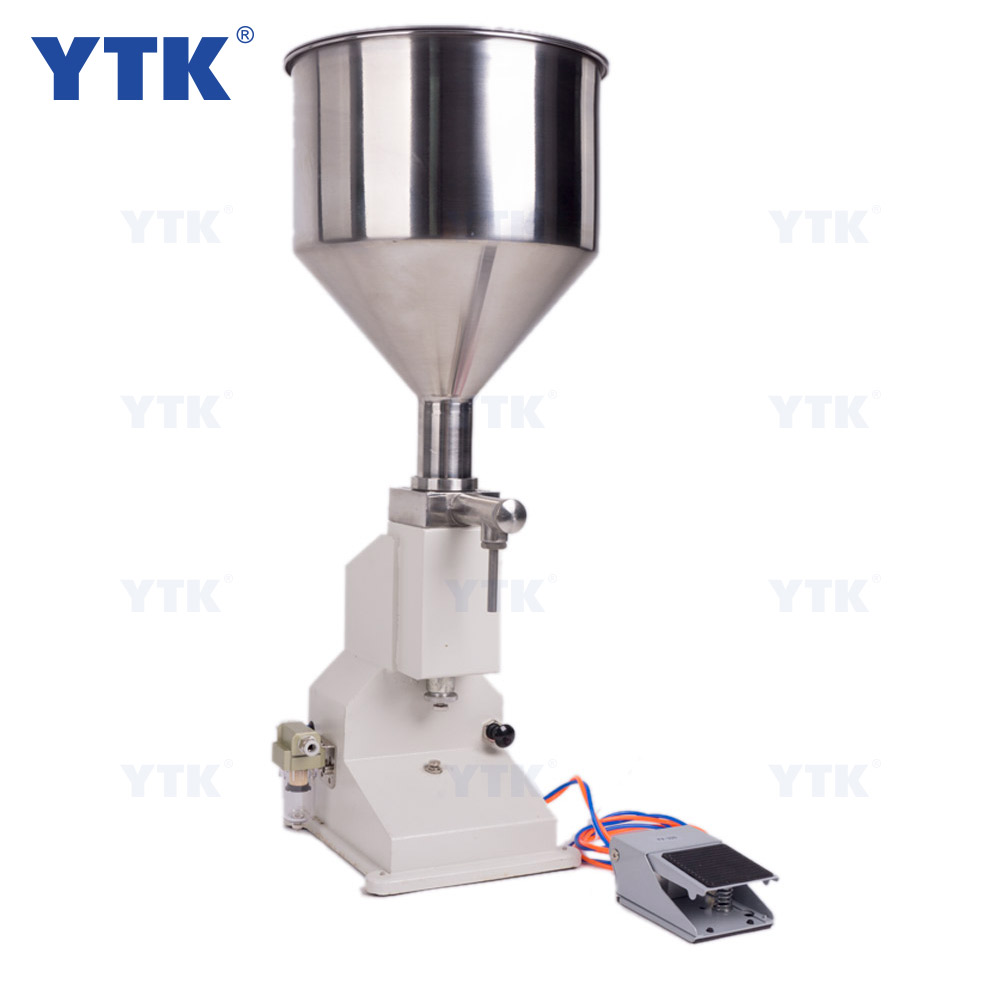

    The A02 pneumatic filling machine is improved on the basis of the A03 manual filling machine, which uses compressed air as power to make the operation more convenient. This product is specially designed for hospitals, laboratories, beauty parlors, small and medium-sized enterprises, etc. It is very suitable for filling small doses of liquid and paste.
    Specification
    Model
    YTK-A02 Small pneumatic filling machine
    Filling speed
    20-60pcs/min
    Filling range
    5-50ml
    Working pressure
    0.4-0.6Mps
    Filling accuracy
    ±1%
    Hopper
    10L
    Weight
    12kg
    Size
    34*34*60cm
    Packing Weight
    18kg
    Packing size
    80*34*34cm
    Application
    Details Images

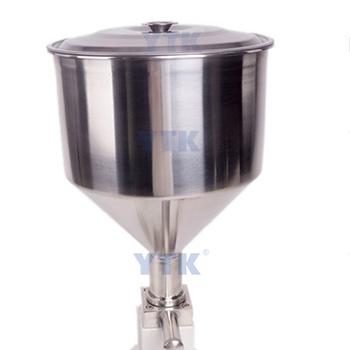

    Stainless Steel Hopper
    The main machine part is made of 304 stainless steel,suitable for filling food or beverage.The 10L hopper make easier to feed filling material during working.

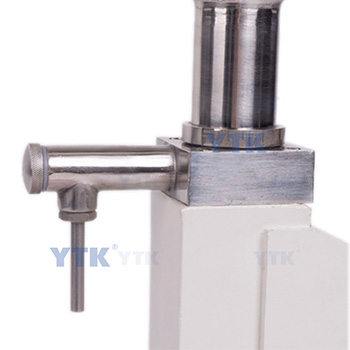

    Filling Nozzle
    This machine will sent with two sizes of filling nozzle,OD4mm and OD8mm,you can choose the suitable one according to production need.

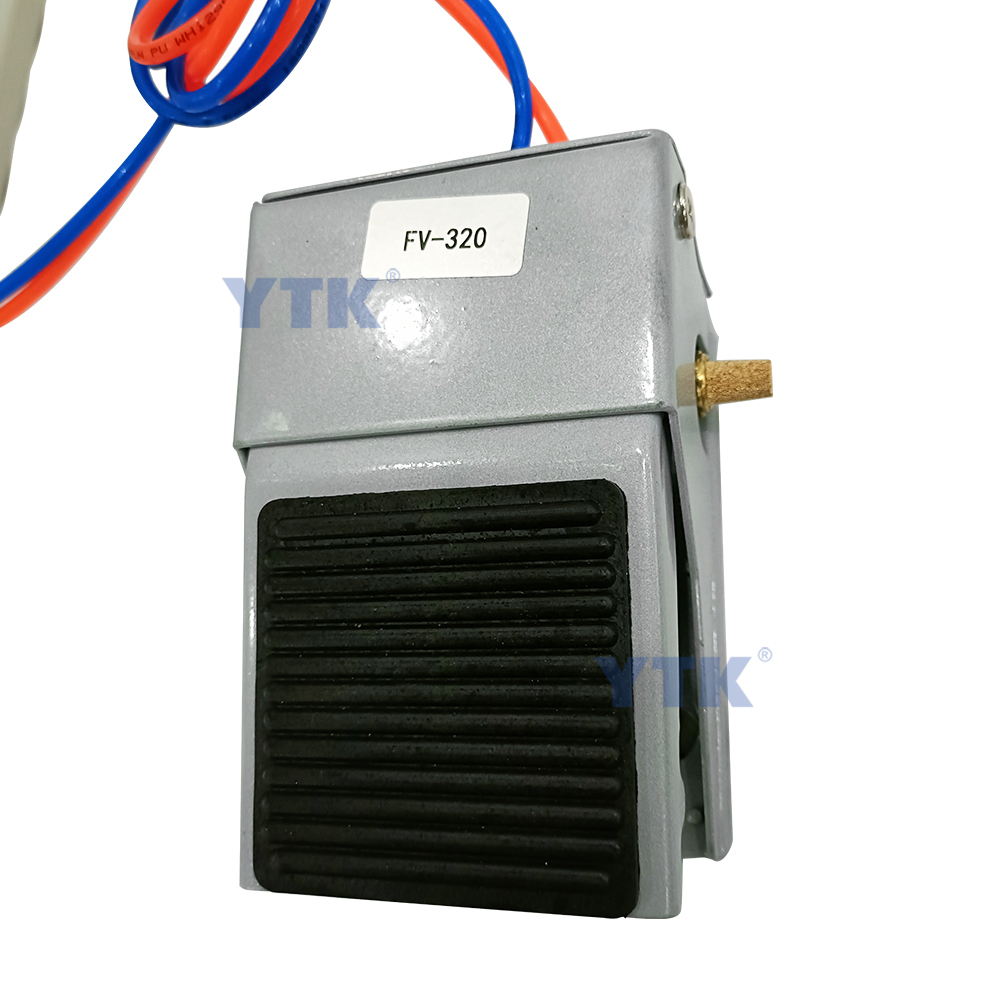

    Foot pedal
    With foot pedal switch,can control machine easily

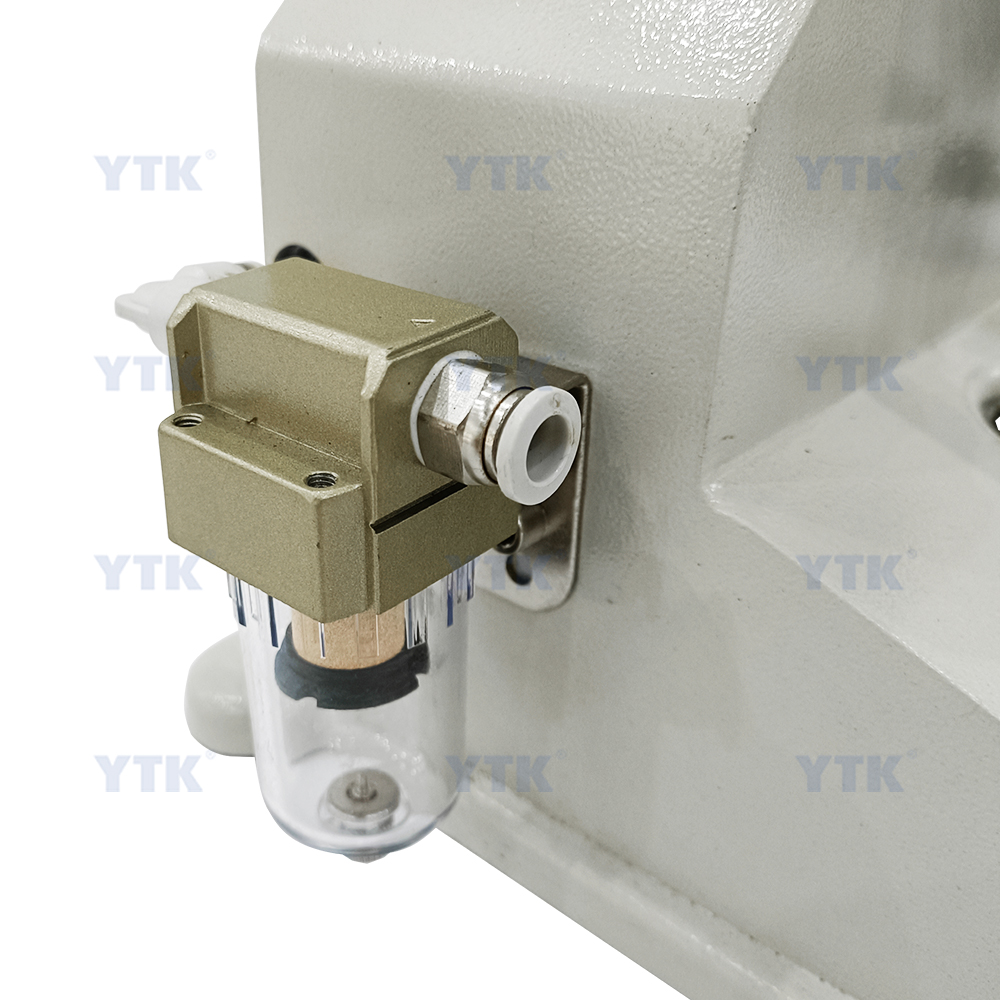

    Air compressor filter
    Air compressor filter,can filter air impurities and work for a long time. Air consumption 0.4MPA-0.6MPA
